产品/Product: 发动机电子测试仪electronic indicator
型号/Type: EPM-XP

INSTRUCTION

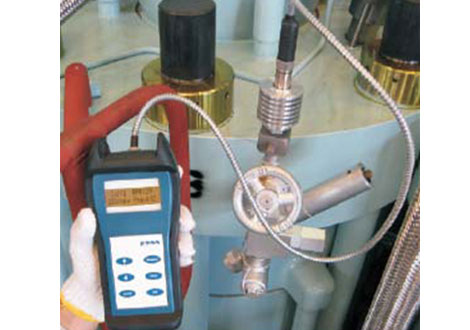

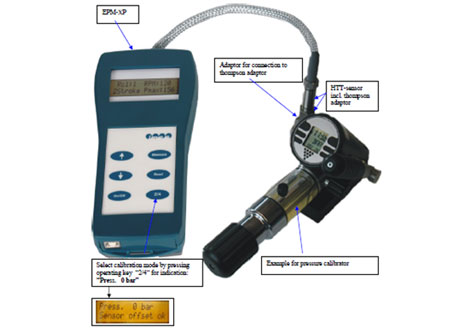

   The electronic indicator EPM-XP is a handy-, battery powered-, portable device to measure and evaluated cylinder pressure on diesel engines at speed up to 1500RPM.
   The EPM-XP collect 10 consecutive pressure measurements(cycles) and calculates peak pressure, engine speed. The measured data are displayed in numerical format on the LCD screen and can be store in memory.

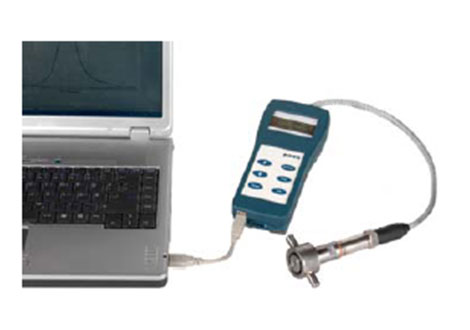

   Up to 160 measurement data sets can be stored in the EPM-XP. The stored data can be downloaded via USB interface to a PC for evaluation.

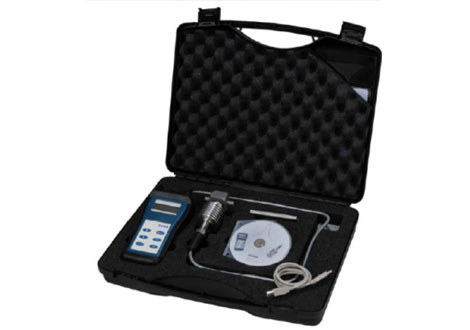

   The scope of supply includes software for Windows which allows additional evaluation and visualization of the collected date.
   Kawasaki and Hyundai has adopt EPM-XP as standard application for some newly coming engines.

Manufacture IMES GMBH
Tel: +49 8341 9661730
Email: sales@imes.de

Korea/China Dealer Jey Entech Co.
Tel: +82-514653660/1
Email: jeychung@paran.com
www.jeyentech.co.kr

China agent of Jey Entech Co Dalian Haixun Trading Co., Ltd
Tel: +86-13591773131
Email: jingzhecai@163.com
